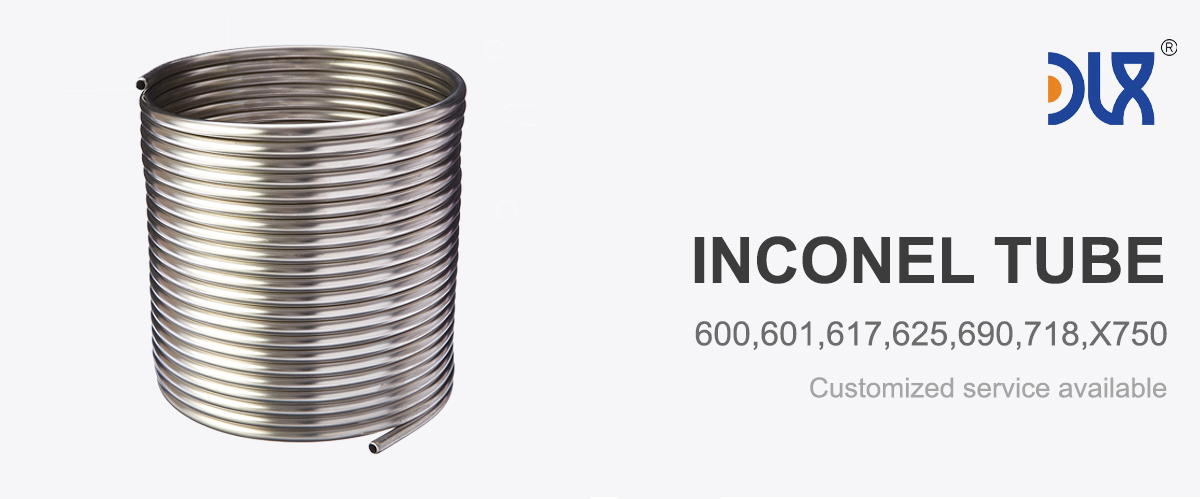

We’re proud to offer Inconel 625 coil tubing, a high-performance nickel-based superalloy designed to tackle the toughest environments. Known for its incredible strength, corrosion resistance, and ability to perform under extreme temperatures, this material is a game-changer for industries like power generation and marine engineering. Whether it’s withstanding the harsh conditions of seawater or the intense heat of a gas turbine, our Inconel 625 coil tubing delivers reliability and durability where other materials fall short. Let’s dive into what makes this product so special, explore its applications, and look at the trends shaping its role in key industries.
For more details, pls directly contact us.
Inconel 625 is a nickel-chromium-molybdenum-niobium alloy, and when formed into coil tubing, it becomes a versatile solution for demanding applications. The alloy’s unique composition—roughly 58-63% nickel, 20-23% chromium, 8-10% molybdenum, and 3-4% niobium—gives it exceptional resistance to corrosion, pitting, and stress corrosion cracking. It’s built to handle temperatures from cryogenic levels up to 982°C (1800°F), making it perfect for extreme conditions. Our coil tubing is manufactured with precision, ensuring seamless performance in continuous production processes, from subsea pipelines to high-temperature exhaust systems.
The coiled form enhances its usability, allowing for continuous lengths that reduce the need for joints and welds, minimizing weak points. This makes it ideal for industries that need flexible, high-strength tubing that can be easily integrated into automated manufacturing lines. We produce our Inconel 625 coil tubing to meet strict ASTM standards, like B444 for seamless tubing, ensuring top-notch quality for every project.
|
Item |
Inconel 600 |
Inconel 601 |
Inconel 617 |
Inconel 625 |
Inconel 718 |
Inconel 825 |
||
|
C |
≤0.15 |
≤0.1 |
0.05-0.15 |
≤0.08 |
≤0.05 |
≤0.08 |
≤0.08 |
≤0.05 |
|
Mn |
≤1 |
≤1.5 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.35 |
≤1 |
≤1 |
|
Fe |
6-10 |
rest |
≤3 |
rest |
7-11 |
rest |
5-9 |
≥22 |
|
P |
≤0.015 |
≤0.02 |
≤0.015 |
-- |
-- |
-- |
-- |
-- |
|
S |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.015 |
≤0.01 |
≤0.01 |
≤0.03 |
|
Si |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.35 |
≤0.5 |
≤0.5 |
|
Cu |
≤0.5 |
≤1 |
-- |
≤0.3 |
≤0.5 |
≤0.3 |
≤0.5 |
1.5-3 |
|
Ni |
≥72 |
58-63 |
≥44.5 |
50-55 |
≥58 |
50-55 |
≥70 |
38-46 |
|
Co |
-- |
-- |
10-15 |
≤10 |
-- |
≤1 |
≤1 |
-- |
|
Al |
-- |
1-1.7 |
0.8-1.5 |
≤0.8 |
-- |
0.2-0.8 |
0.4-1 |
≤0.2 |
|
Ti |
-- |
-- |
≤0.6 |
≤1.15 |
-- |
-- |
2.25-2.75 |
0.6-1.2 |
|
Cr |
14-17 |
21-25 |
20-24 |
17-21 |
27-31 |
17-21 |
14-17 |
19.5-23.5 |
|
Nb+Ta |
-- |
-- |
-- |
4.75-5.5 |
-- |
4.75-5.5 |
0.7-1.2 |
-- |
|
Mo |
-- |
-- |
8-10 |
2.8-3.3 |
-- |
2.8-3.3 |
-- |
2.5-3.5 |
|
B |
-- |
-- |
≤0.006 |
-- |
-- |
-- |
-- |
-- |
|
Shape |
Size (mm) |
|
Wire |
0.02-7.50 |
|
Rod/Bar |
8.0-200 |
|
Strip |
(0.5-2.5)*(5-180) |
|
Tube/Pipe |
Customized |
|
Sheet/Plate |
Customized |
For more details, pls directly contact us.
Our Inconel 625 coil tubing stands out for several reasons. First, its corrosion resistance is unmatched, especially in chloride-heavy environments like seawater, where it resists pitting and crevice corrosion better than most stainless steels. Second, it maintains its mechanical strength at high temperatures, with a tensile strength of 700-1200 MPa and yield strength of 280-345 MPa at room temperature. Even at 982°C, it retains significant strength, making it a go-to for power generation systems like gas turbines. Third, its excellent weldability and formability mean it can be shaped into complex designs without losing integrity, which is a big win for manufacturers.
The coil form adds another layer of value. It’s optimized for continuous processing, reducing material waste and speeding up production. Whether you’re dealing with aggressive chemicals, high-pressure systems, or fluctuating temperatures, our tubing delivers long-term reliability, cutting down on maintenance costs and downtime.
Industry Trends Driving Inconel 625 Coil Tubing Demand
The industries we serve are evolving, and Inconel 625 coil tubing is at the forefront of meeting new challenges. In power generation, the push for cleaner, more efficient energy is driving demand for materials that can handle extreme conditions in gas turbines, waste-to-energy systems, and even emerging solar power plants using molten salt. The global energy market is expected to grow steadily, with a focus on sustainable solutions, and our tubing is perfectly suited for these high-performance systems.
In the marine sector, offshore oil and gas exploration is expanding into deeper waters, where equipment faces intense pressure and corrosive seawater. The global offshore drilling market is projected to grow at a CAGR of over 5% through 2030, and materials like Inconel 625 are critical for reliable subsea pipelines and control lines. Additionally, the rise of renewable marine technologies, like wave and tidal energy systems, is creating new opportunities for corrosion-resistant materials.
Another trend is the shift toward automation and precision manufacturing. Our coil tubing’s continuous length and formability make it a favorite for automated production lines, where efficiency and minimal waste are priorities. As industries prioritize sustainability and cost-effectiveness, our product aligns perfectly with these goals by offering durability and reduced maintenance needs.
Applications of Inconel 625 Coil Tubing
Our Inconel 625 coil tubing shines in a variety of applications, particularly in power generation and marine environments. Here’s a closer look at how it’s used:
In power generation, our tubing is a critical component in gas turbines, heat exchangers, and waste-to-energy systems. Gas turbines operate at temperatures exceeding 1000°C, and our tubing maintains its strength and resists oxidation, ensuring long-term performance. In waste-to-energy plants, where corrosive halides from burning refuse are a challenge, Inconel 625’s resistance to halogen attack makes it a top choice. It’s also used in solar power plants, where tubing must withstand molten salt at temperatures up to 635°C, maintaining structural integrity in corrosive conditions.
In marine environments, our tubing is used in subsea pipelines, control lines, and heat exchangers. Its resistance to chloride-induced stress corrosion cracking makes it ideal for seawater applications, such as desalination plants and offshore platforms. For example, in deep-sea oil extraction, where pipelines face pressures at depths of 2000-3000 meters, our tubing provides the strength and corrosion resistance needed to prevent failures. It’s also used in marine hardware like bellows and expansion joints, where flexibility and durability are essential.
Beyond power and marine, our tubing finds applications in chemical processing, where it handles aggressive acids like sulfuric and hydrochloric. In aerospace, it’s used in exhaust systems and turbine seals, where high temperatures and vibration demand a robust material. The oil and gas industry also relies on it for downhole components and control lines, where reliability under pressure is non-negotiable.
Inconel 625 outperforms 316 stainless steel in corrosive environments and high-temperature applications, making it worth the investment for critical systems. Compared to Incoloy 825, it offers superior pitting resistance and higher temperature tolerance, making it the go-to for extreme marine and power applications.
Our Company’s Advantages
We take pride in producing Inconel 625 coil tubing that sets the industry standard. Our manufacturing process uses state-of-the-art technology to ensure precision and consistency, meeting ASTM B444 and B704 standards for seamless and welded tubing. We source high-purity raw materials to guarantee the alloy’s composition delivers maximum corrosion resistance and strength. Our coil tubing is designed for easy integration into automated systems, reducing waste and boosting efficiency for our clients.
Unlike others, we focus on customization, offering tubing in various diameters and wall thicknesses to meet specific project needs. Our rigorous quality control includes electrochemical testing and microstructural analysis to ensure every coil is free from defects. We also prioritize sustainability, using processes that minimize waste and energy consumption. Our global supply chain ensures fast delivery, and our technical support team is always ready to help with material selection and fabrication guidance, ensuring you get the most out of our product.
|
Parameter |
Inconel 625 |
316 Stainless Steel |
Incoloy 825 |
|---|---|---|---|
|
Corrosion Resistance |
Excellent (seawater, acids) |
Good (mild environments) |
Very good (acids, seawater) |
|
Pitting/Crevice Corrosion |
Outstanding (high Mo content) |
Moderate (susceptible in chlorides) |
Good (less effective than 625) |
|
High-Temperature Strength |
Up to 982°C, retains 530-650 MPa |
Limited above 800°C |
Up to 540°C, lower strength |
|
Tensile Strength (Room Temp) |
700-1200 MPa |
515-690 MPa |
690-900 MPa |
|
Yield Strength (Room Temp) |
280-345 MPa |
205-310 MPa |
310-450 MPa |
|
Weldability |
Excellent, no sensitization |
Good, risk of sensitization |
Good, some limitations |
|
Formability |
High, ideal for coiling |
Moderate |
Moderate |
|
Cost |
Higher, but long-term savings |
Lower |
Moderate |
Looking ahead, we see Inconel 625 coil tubing playing a bigger role in emerging technologies. In power generation, the shift toward renewable energy sources like solar and geothermal will increase demand for materials that can handle corrosive fluids and high temperatures. In marine applications, the growth of deep-sea exploration and renewable marine energy systems will rely on our tubing’s unmatched durability. We’re also investing in R&D to enhance our manufacturing processes, making our tubing even more efficient and sustainable.
Our commitment to quality and innovation ensures that our Inconel 625 coil tubing will continue to meet the evolving needs of industries worldwide. Whether you’re building a gas turbine, a subsea pipeline, or a chemical reactor, our product offers the reliability and performance you need to succeed. Contact us today to learn how our Inconel 625 coil tubing can elevate your next project.
For more details, pls directly contact us.
|
|
|
|
|
|
About Us:

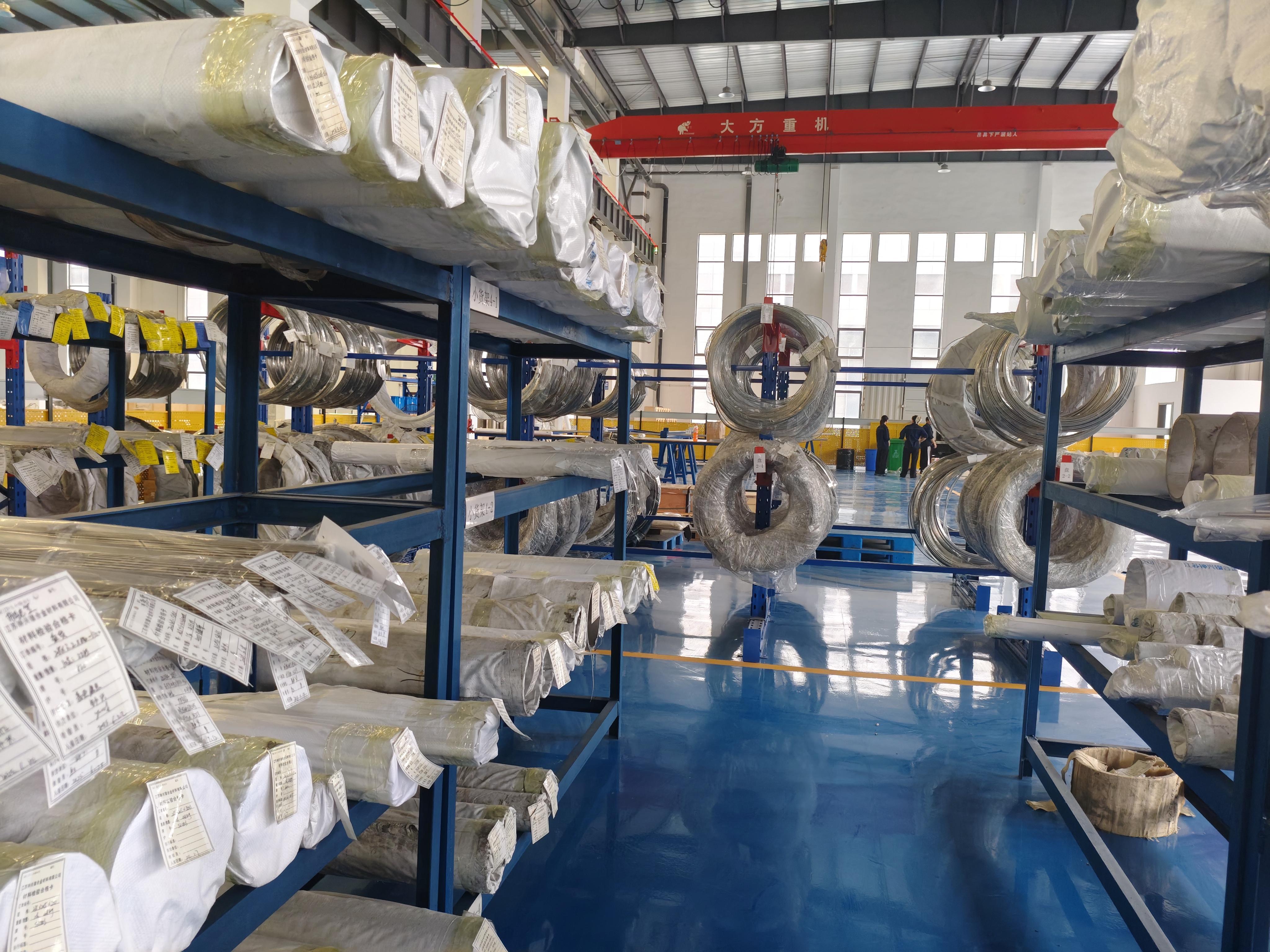

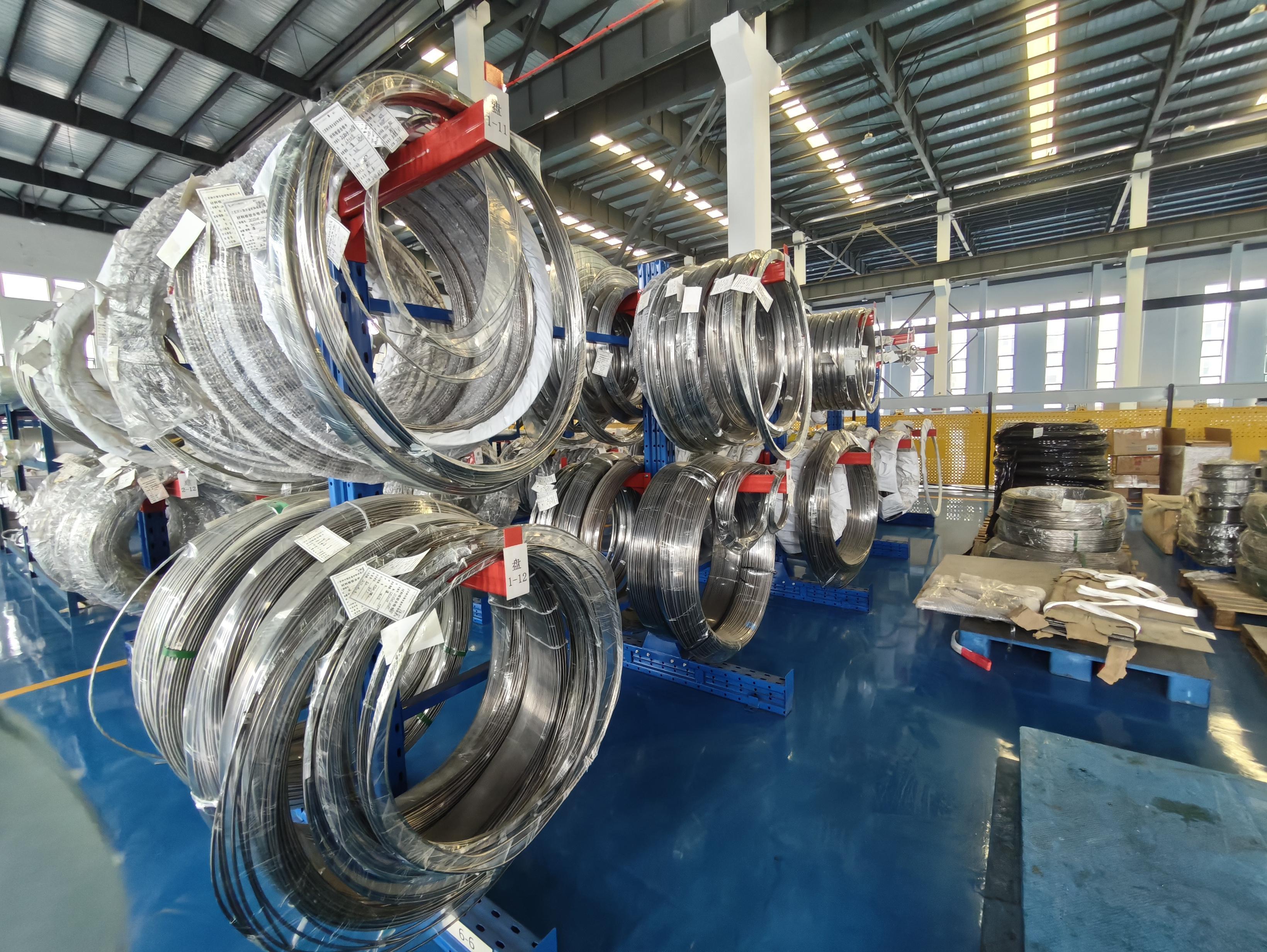

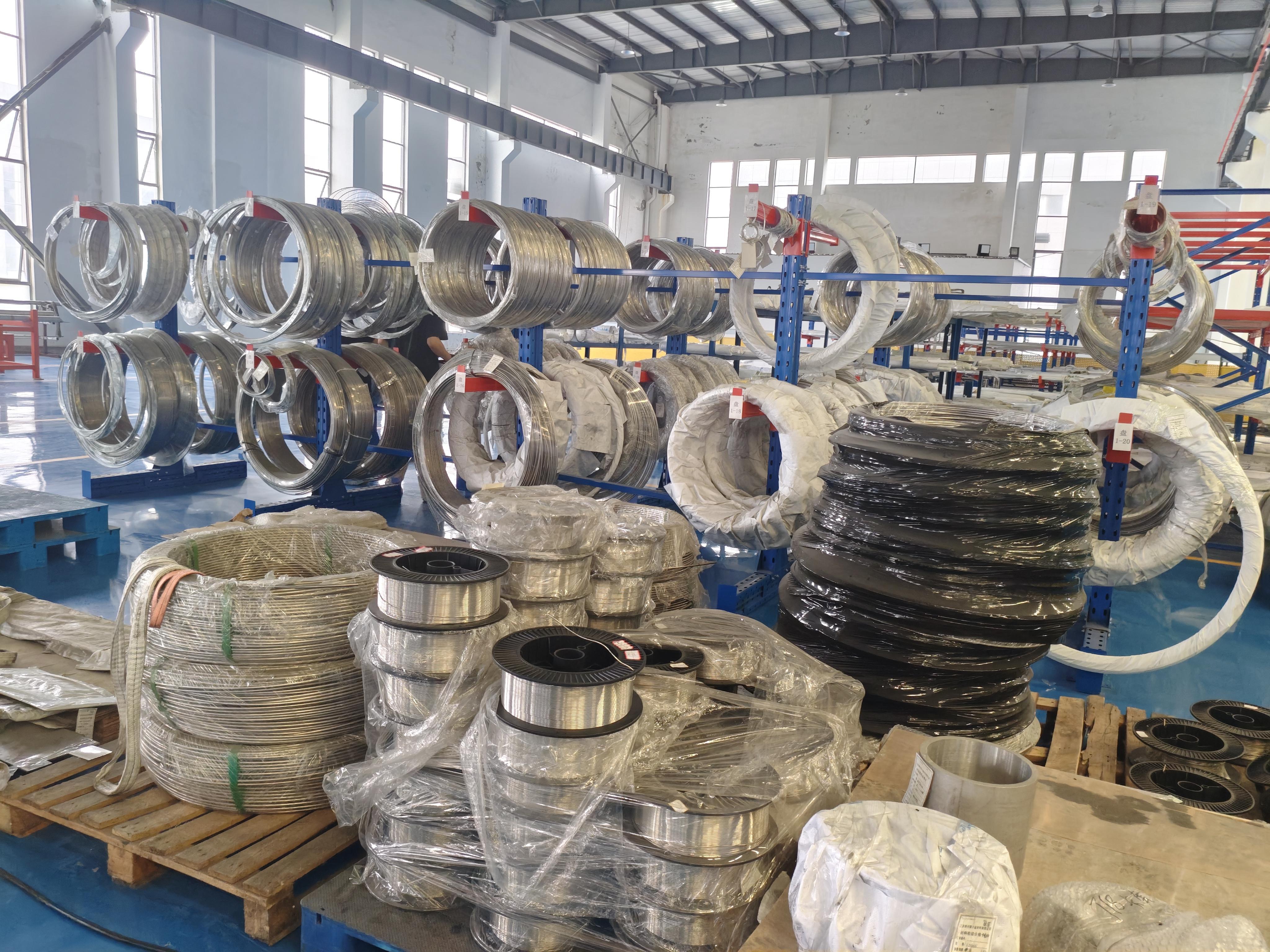

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
-
What makes Inconel 625 coil tubing ideal for power generation?
Its ability to maintain strength at temperatures up to 982°C and resist oxidation makes it perfect for gas turbines and heat exchangers. -
Why is Inconel 625 preferred for marine applications?
Its high resistance to chloride-induced corrosion, pitting, and crevice corrosion ensures durability in seawater environments. -
Can Inconel 625 coil tubing be welded easily?
Yes, it offers excellent weldability without losing corrosion resistance, using standard methods like TIG or MIG. -
How does Inconel 625 compare to stainless steel?
It outperforms stainless steel in high-temperature strength and corrosion resistance, especially in chloride-heavy environments. -
What industries use Inconel 625 coil tubing?
It’s widely used in power generation, marine, aerospace, chemical processing, and oil and gas industries. -
Is Inconel 625 coil tubing cost-effective?
While initially more expensive, its durability and low maintenance needs lead to long-term cost savings. -
What temperatures can Inconel 625 coil tubing handle?
It performs reliably from cryogenic temperatures up to 982°C (1800°F). -
Why choose coil tubing over other forms?
Coil tubing offers continuous lengths, reducing joints and improving efficiency in automated manufacturing.
