Introduction: Why Choosing the Right Inconel Alloy Matters
Inconel alloys are among the most widely used nickel-based superalloys in industries such as aerospace, chemical processing, power generation, and heat treatment. Among them, Inconel 600 , 601, and 625 are three of the most commonly specified grades.
However, many B2B buyers struggle with selecting the right material due to their similar names but different performance characteristics.
Choosing the wrong alloy can result in:
-
Reduced equipment lifespan
-
Unexpected corrosion failure
-
Higher maintenance costs
-
Inefficient performance
DLX Alloy provides a clear comparison and selection guide to help global buyers make the right decision.
What Are Inconel 600, 601, and 625?
These three alloys belong to the nickel-chromium family but differ in composition and strengthening mechanisms.
-
Inconel 600: Solid solution strengthened Ni-Cr alloy
-
Inconel 601 : Enhanced oxidation-resistant version of 600
-
Inconel 625 : Ni-Cr-Mo-Nb alloy with superior strength and corrosion resistance
Chemical Composition Comparison
| Element | Inconel 600 | Inconel 601 | Inconel 625 |
|---|---|---|---|
| Nickel (Ni) | ≥72% | 58–63% | ≥58% |
| Chromium (Cr) | 14–17% | 21–25% | 20–23% |
| Iron (Fe) | 6–10% | Balance | ≤5% |
| Molybdenum (Mo) | — | — | 8–10% |
| Niobium (Nb) | — | — | 3–4% |
Key Insight:
-
601 has higher chromium → better oxidation resistance
-
625 contains Mo & Nb → superior corrosion + strength
Key Performance Differences

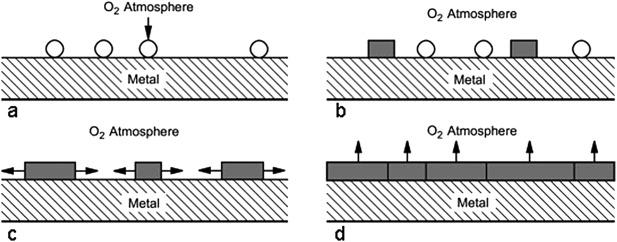

1. High Temperature Resistance
-
Inconel 600: Good up to ~1100°C
-
Inconel 601: Excellent oxidation resistance up to ~1200°C
-
Inconel 625: Strong but less oxidation-focused
Best choice for high-temperature oxidation: 601
2. Corrosion Resistance
-
600: General corrosion resistance
-
601: Moderate corrosion resistance
-
625: उत्कृष्ट resistance to seawater, acids, and chemicals
Best choice for harsh environments: 625
3. Mechanical Strength
-
600 / 601: Moderate strength
-
625: Very high strength due to solid-solution strengthening
Best choice for structural applications: 625
4. Cost Consideration
-
600: Most cost-effective
-
601: Slightly higher
-
625: Most expensive (due to Mo & Nb)
Best value for budget-sensitive projects: 600
Application Comparison
| Alloy | Typical Applications |
|---|---|
| Inconel 600 | Heating elements, furnace components |
| Inconel 601 | Heat treatment equipment, burners |
| Inconel 625 | Marine, chemical processing, aerospace |
How to Choose the Right Alloy
Choose Inconel 600 if:
-
Cost is critical
-
Moderate temperature environment
-
General-purpose use
Choose Inconel 601 if:
-
High-temperature oxidation resistance is required
-

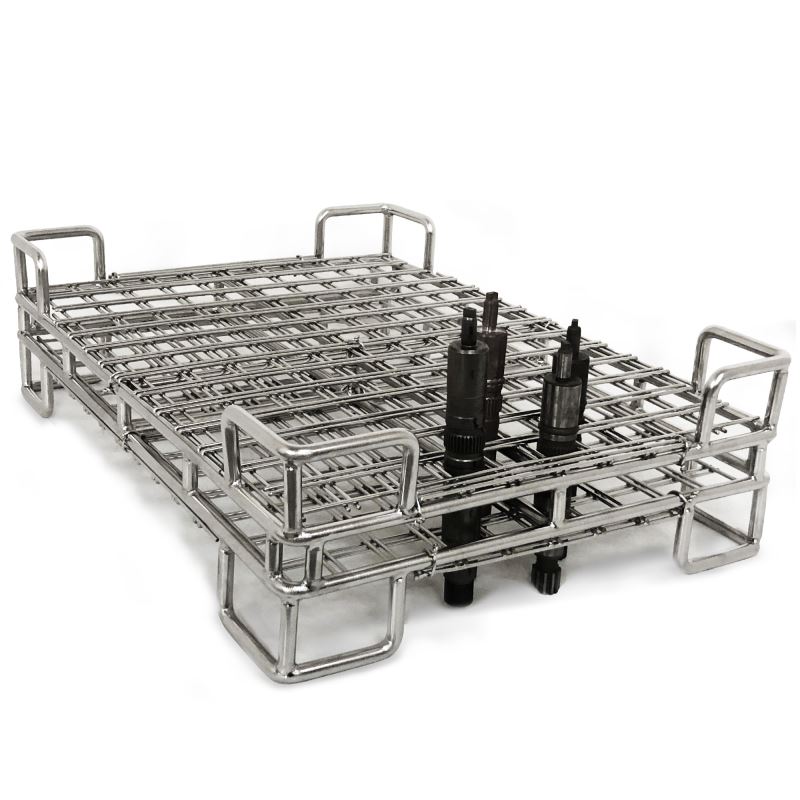

Furnace or thermal processing application
Choose Inconel 625 if:
-
Severe corrosion environment
-
High strength required
-
Marine or chemical industry
Technical Specification Table
| Property | Inconel 600 | Inconel 601 | Inconel 625 |
|---|---|---|---|
| Density | 8.47 g/cm³ | 8.11 g/cm³ | 8.44 g/cm³ |
| Melting Point | ~1350°C | ~1370°C | ~1350°C |
| Max Temp | ~1100°C | ~1200°C | ~980°C |
| Strength | Medium | Medium | High |
| Corrosion Resistance | Good | Moderate | Excellent |

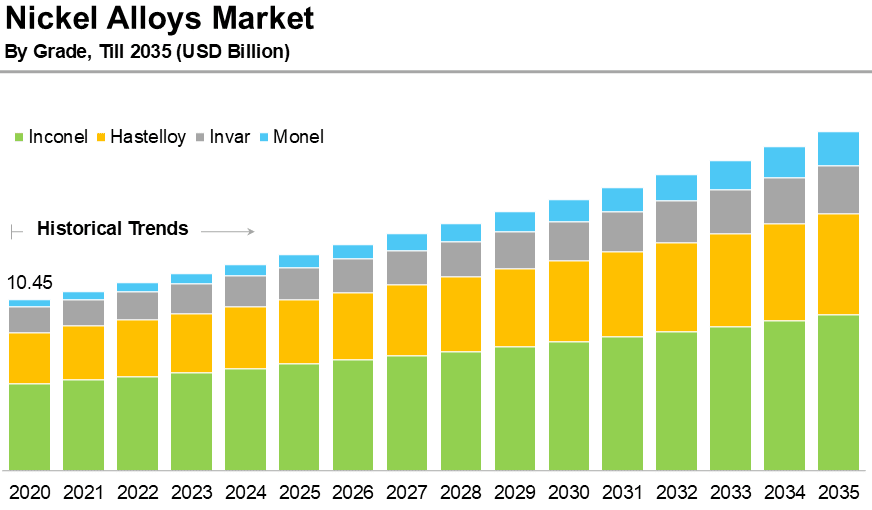

Industry Trends
The demand for Inconel alloys is increasing due to:
-
Growth in aerospace industry
-
Expansion of chemical processing plants
-
Rising demand for high-temperature materials
-
Shift toward high-performance alloys
Buyers are focusing more on:
-
Lifecycle cost
-
Material reliability
-
Supplier stability
Why Choose DLX Alloy?
DLX Alloy provides:
-
Full range of Inconel alloys (600 / 601 / 625)
-
Stable chemical composition
-
Strict quality control
-
Global export experience
-

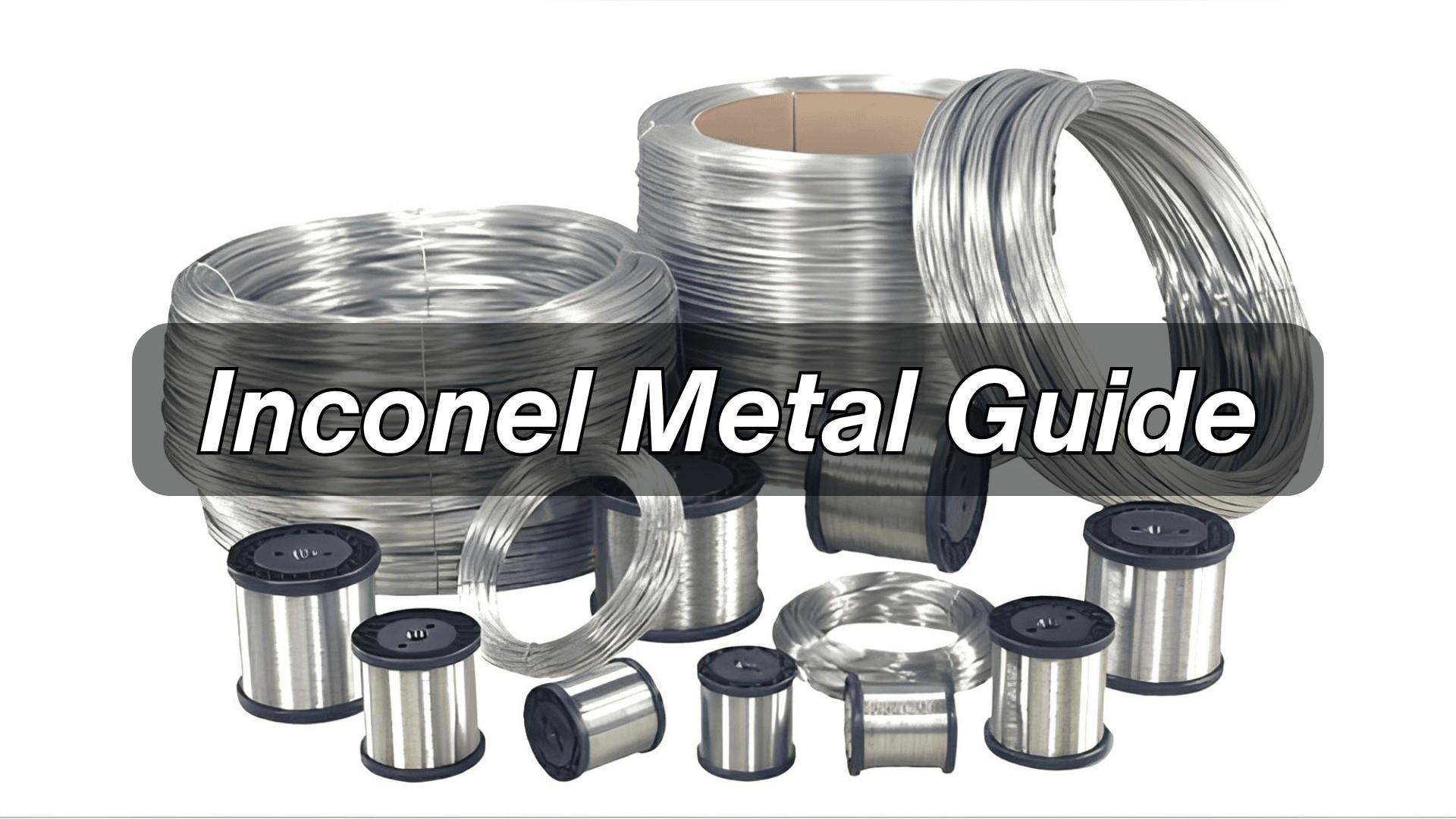

Custom shapes: wire, rod, strip, sheet
FAQ
1. Which alloy is best for high temperature?
Inconel 601 performs best in oxidation environments.
2. Which alloy has the best corrosion resistance?
Inconel 625 is the best choice.
3. Is Inconel 625 worth the higher cost?
Yes, for critical applications requiring durability and strength.
4. Can DLX Alloy provide custom sizes?
Yes, including wire, rod, strip, and sheet.
5. What industries use these alloys?
Aerospace, chemical, marine, energy, and heat treatment.
